Description

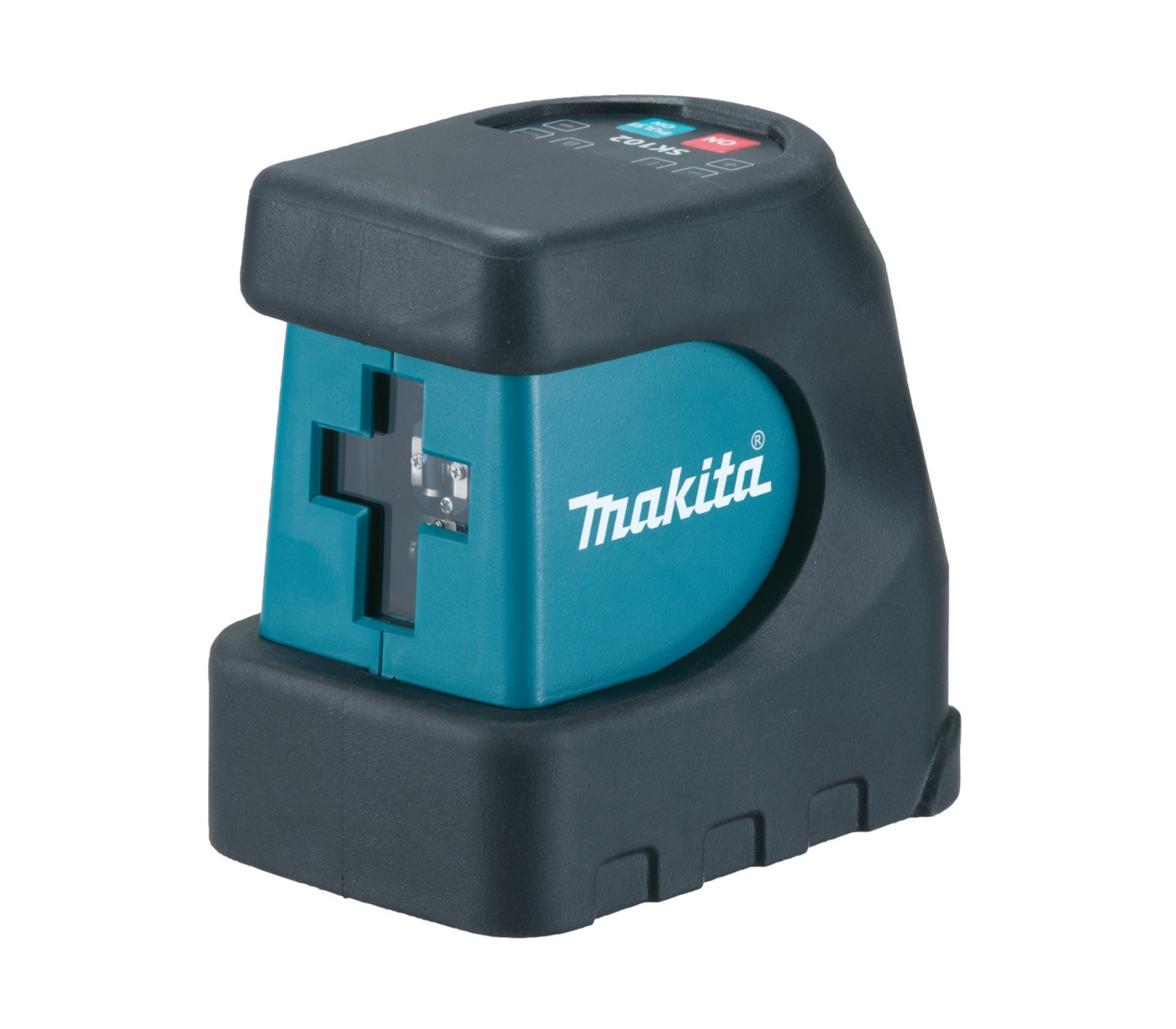

Technical Specification (SK102Z)
Horizontal line accuracy +/-0.3mm/m
Vertical line accuracy +/-0.3mm/m
Range 15m (30m with receiver)
Self levelling range +/-4°
Pulse mode w/detector Yes
Pendulum lock Yes
Out of level alarm Yes (visible)
Power source 3x AA batteries
Battery life 11hr (minimum)
Operating temp. range -10°C – +40°C
Storage temp. range -25°C – +70°C
Dust/water proof IP54
Dimensions (L x w x H) 102 x 75 x 102 mm
Net weight 475g

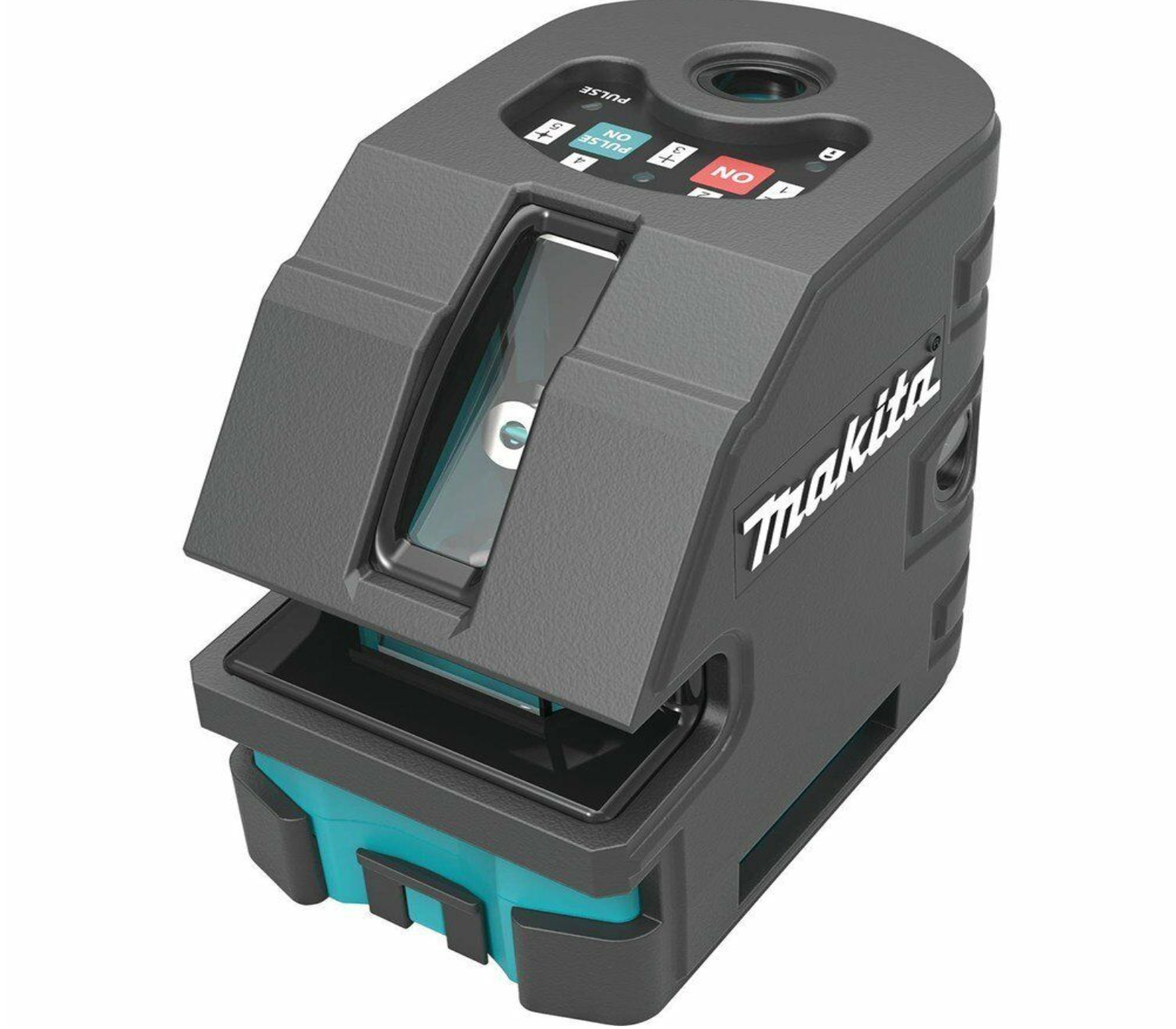

Technical Specification (SK103PZ)
Measuring Range Up to 15mm (with detectorUp to 60mm)
Leveling accuracy ±3mm / 10m
Self-leveling range 4+-1 degrees
Horizontal fan angle 180 degrees
Vertical fan angle 180 degrees
Number of laser points 4
Number of laser lines 2
Laser type (Laser class 2) : 635nm
Operating temperature range -10 – 40 degrees
Storage temp. range -25 – 70 degrees
Tripod thread 1/4″
IP54
Dimensions (L x w x H) 0.53kg
Net weight 475g

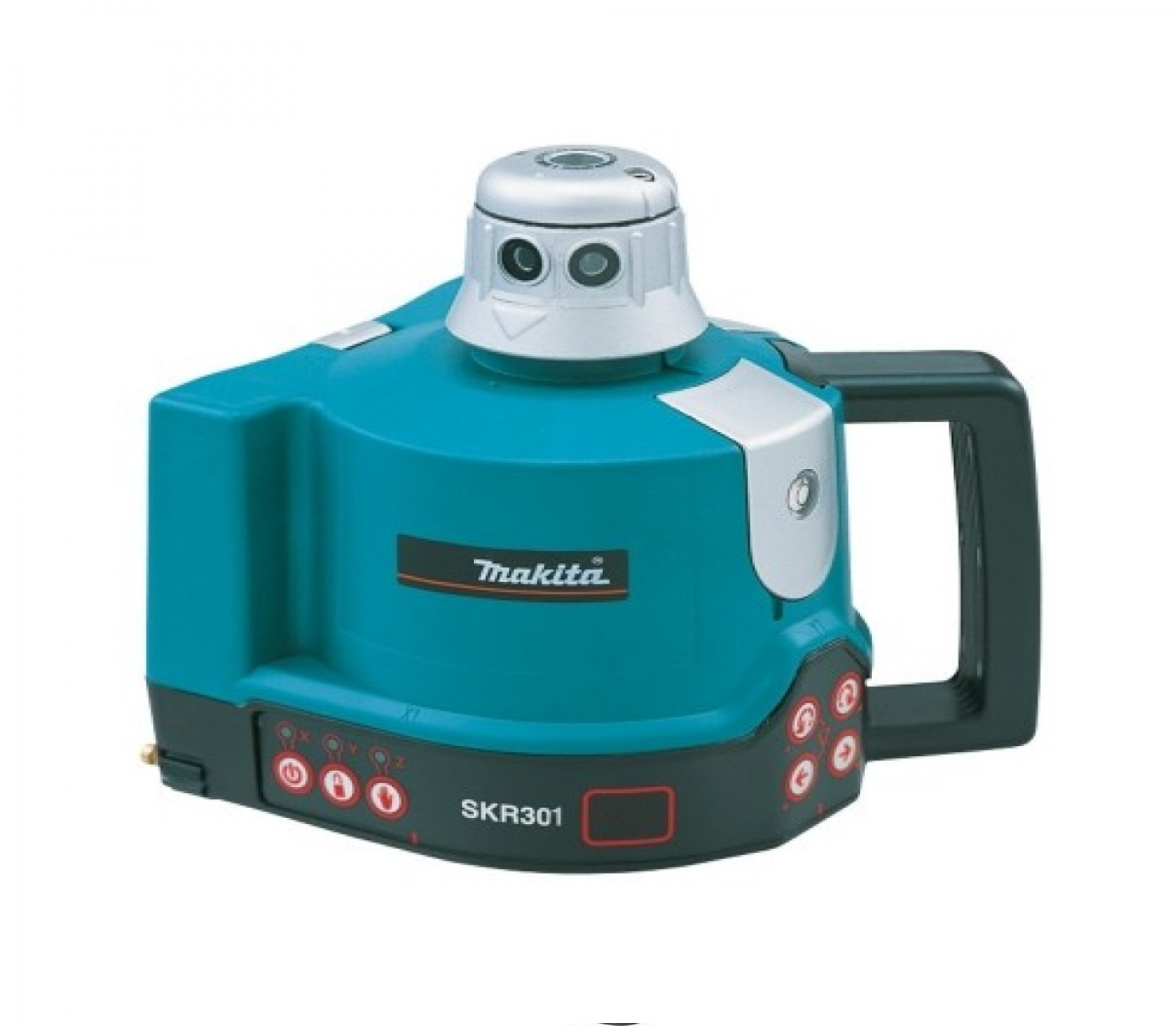

Technical Specification (SKR301)
Operating range Radius / Diameter150 / 300mm
Rotation Speed 0-535rpm
Leveling accuracy + – 10mm / 100m
Leveling range (degrees) -8
Power supply Cell battery : 2pcs
Operating time (approx. hrs) 160
