Makita Brad Nailer

Features/Benefits (AF505 | AF301)

  • Accurate high caliber nailer.
  • Handy, and light weight brad nailer.
  • Tool-less depth adjustment and clear jam release.
  • Rubber bumper protects the wood surface.
  • 360 degrees multi-direction exhaust port.
  • Rubberized soft grip.
  • Uses 18 gauge brad nails from 13/32″ to 1-3/16″ (10 mm to 30 mm).

Standard Equipments(AF505 | AF301)

Oil Supply, Hex Wrench.

Clear
SKU: N/A

Manufacturer Sku: AF505 | AF301

Categories: , Brand:

Description

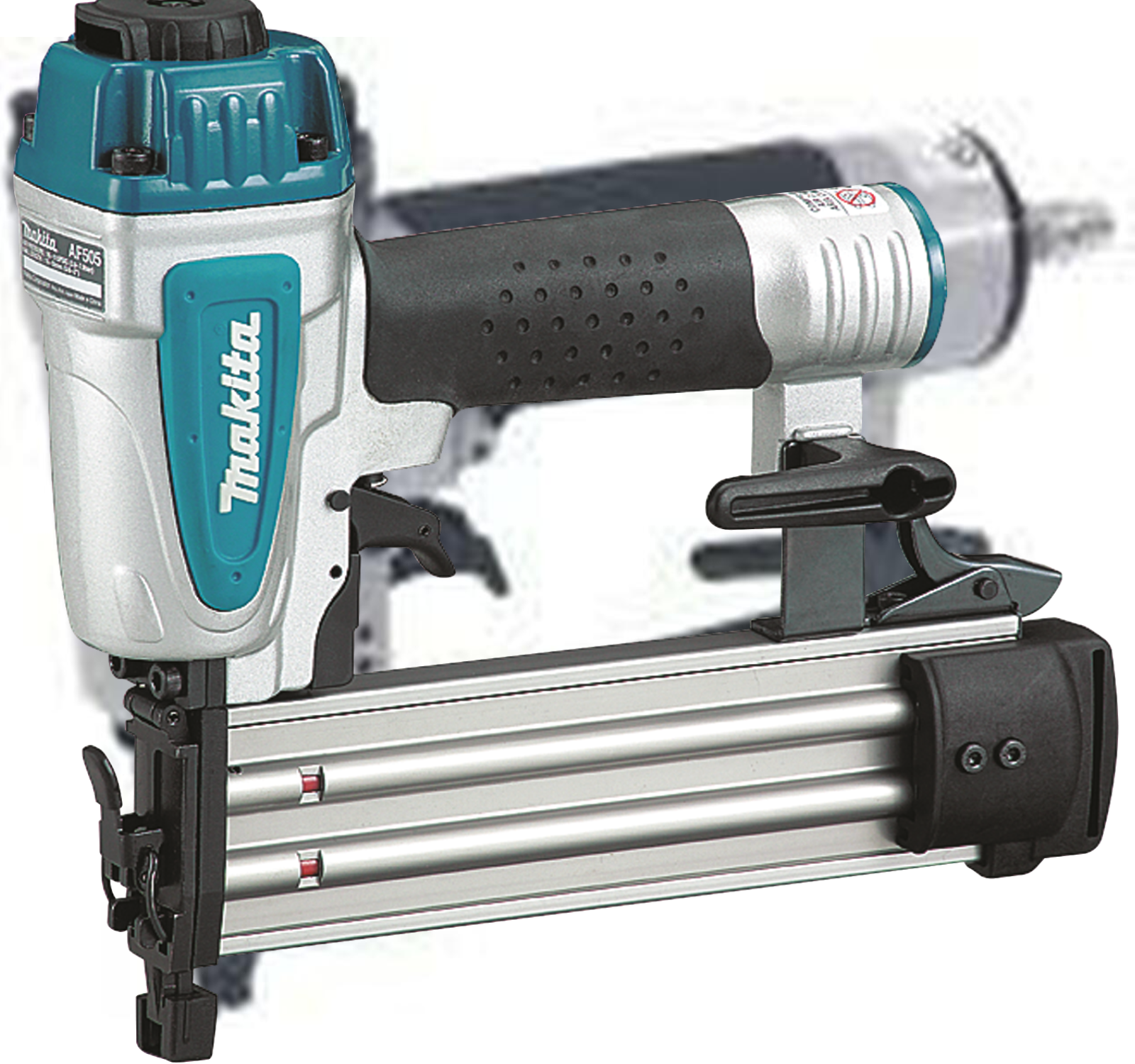

Technical Specification (AF505)

Capacity:Nail size: 15 – 50mm (5/8″ – 2″)Gauge:18 Ga,Capacity:100pcs
Operating air pressure 60 – 115 PSIG (4 – 8kgf/cm2 G)
Net weight 1.4kg (3.1lbs)

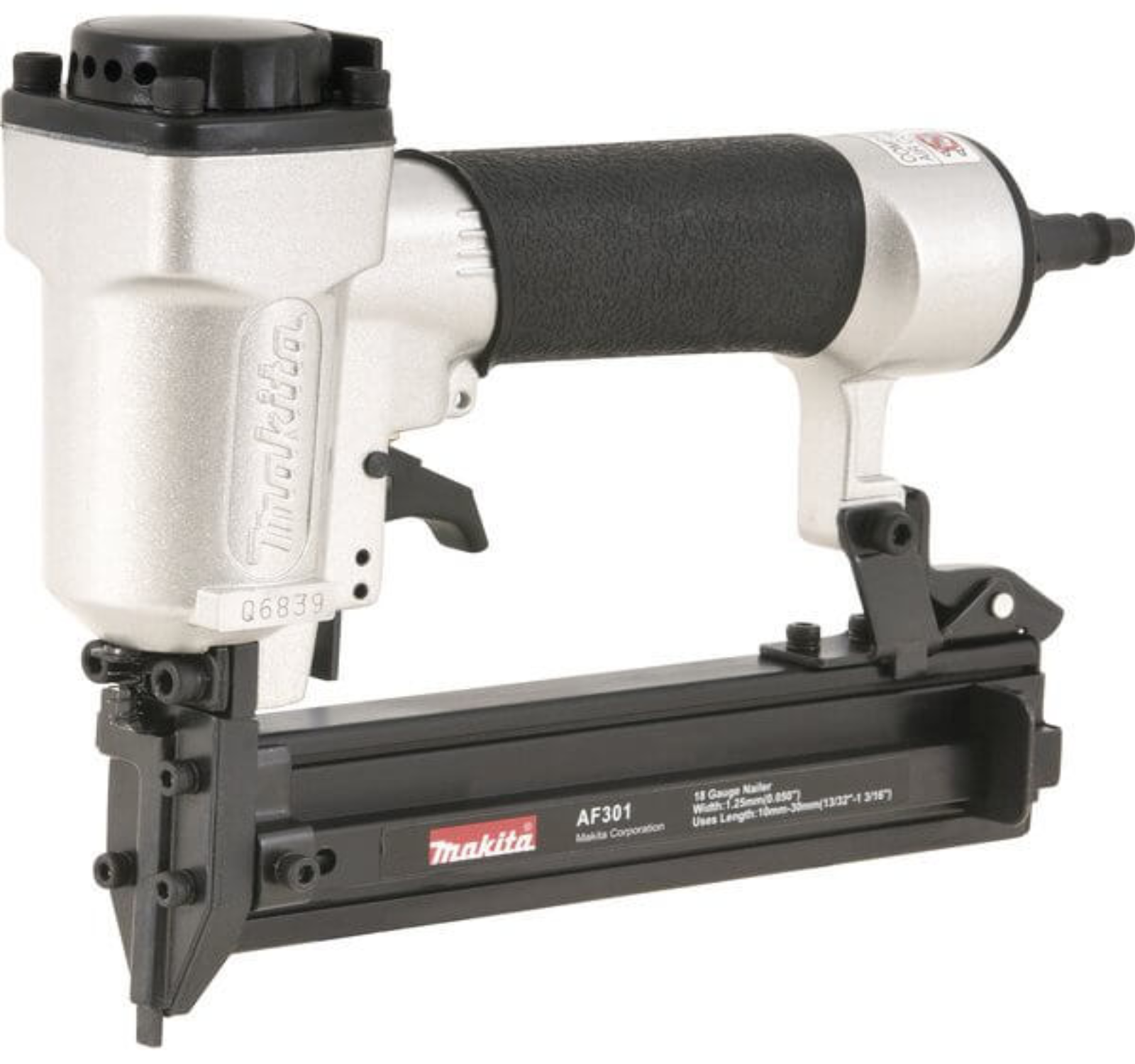

Technical Specification (AF301)

Operating air pressure 65 PSIG (4.5 kgf / cm­² G­)
Staple size:Head:2.0 mm (0.079”)Shank width:1.25 mm (0.050”)Shank thickness:1.05 mm (0.041”)Gauge:18,Length:10 – 30 mm (13/32” – 1-3/16”)
Staple capacities 100
Overall length 250 mm (10”)
Net weight 1.3 kg (2.86 lbs)

Additional information

Model :

AF505, AF301

Vendor Information

  • Store Name: MAKITA
  • Vendor: MAKITA
  • Address: United Arab Emirates
